Examples: Adding a New Zone

Single

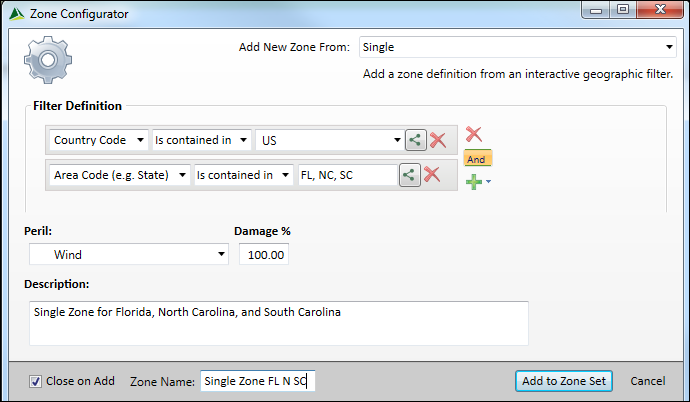

To create a zone containing three Southern states, Florida (FL), North Carolina (NC), and South Carolina (SC), select Single and define a filter where Country Code is contained in US and Area Code (e.g. State) is contained in FL, NC, SC. (Add the state filter to the country filter by clicking (Add) next to the Country Code filter row.) Select a peril and assign a damage percent. Optionally, enter a description. Enter a zone name and then click Add to Zone Set. You can enter comma-separated values, for example, when specifying states, counties, and postal codes.

Multiple

To create a zone containing states in the United States, select Multiple and define a filter where Country Code is contained in US. In the Area Level Selector list, select Area Code (e.g. State) to specify the resolution of the zone. Select a peril, assign a damage %, and then click Append To List. The Zones to Generate pane includes 51 zones (50 states and the District of Columbia). Enter a zone prefix (optional) and then click Add to Zone Set.

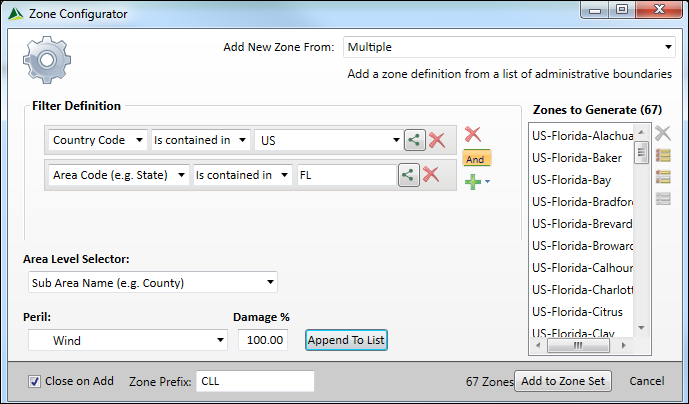

To create a zone containing counties in Florida, select Multiple and define a filter where Country Code is contained in US and Area Code is contained in FL. Add the state filter to the country filter by clicking (Add new filter) next to the Country Code filter row and then defining the area (state). In the Area Level Selector list, select Sub Area Name (e.g. County), specify the peril and damage % and then click Append To List. The Zones to Generate pane includes 67 counties.

Selected

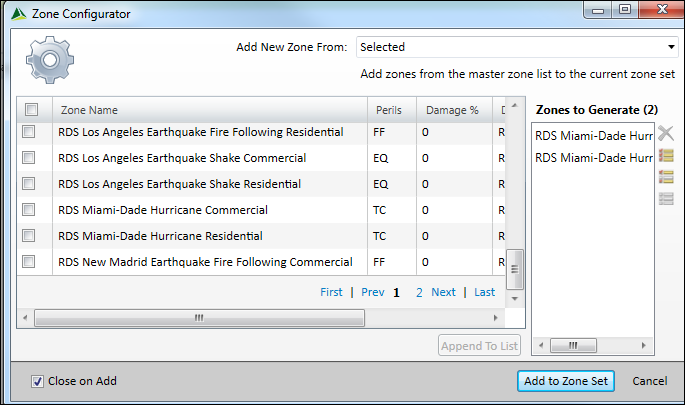

To create a zone from one or more existing zones, select Selected. The Zone Configurator displays the master zone list. Select each zone that you want to include in the new zone and then click Append To List. The Zones to Generate pane includes the selected zones. Click Add to Zone Set.
